BZX55-C10 - ZENER DIODES

General Semiconductor

📥 Download Datasheet

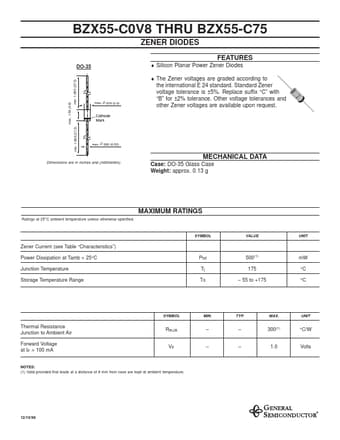

BZX55-C10 Datasheet Preview — Preview of BZX55-C10 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BZX55-C10
Manufacturer	General Semiconductor
File Size	298.67 KB
Description	ZENER DIODES
Datasheet	BZX55-C10_GeneralSemiconductor.pdf

BZX55-C10 Product details

Features

DO-35 min. 1.083 (27.5).
Silicon Planar Power Zener Diodes.
The Zener voltages are graded according to the international E 24 standard. Standard Zener voltage tolerance is ±5%. Replace suffix “C” with “B” for ±2% tolerance. Other voltage tolerances and other Zener voltages are available upon request. max. .150 (3.8) max. ∅.079 (2.0) Cathode Mark min. 1.083 (27.5) max. ∅.020 (0.52).
