BZX85-C16 - ZENER DIODES

General Semiconductor

📥 Download Datasheet

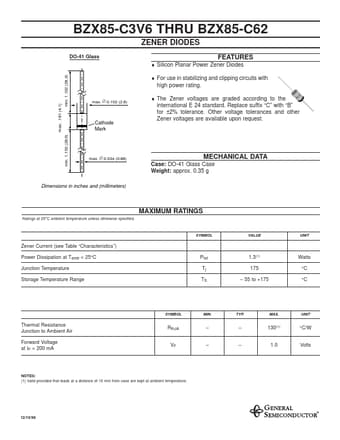

BZX85-C16 Datasheet Preview — Preview of BZX85-C16 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BZX85-C16
Manufacturer: General Semiconductor
File Size: 209.13 KB
Datasheet: BZX85-C16_GeneralSemiconductor.pdf
Description: ZENER DIODES

BZX85-C16 Product details

Features

Silicon Planar Power Zener Diodes.
For use in stabilizing and clipping circuits with high power rating. max. .161 (4.1) min. 1.102 (28.0) max. ∅ 0.102 (2.6) Cathode Mark.
The Zener voltages are graded according to the international E 24 standard. Replace suffix “C” with “B” for ±2% tolerance. Other voltage tolerances and other Zener voltages are available upon request. min. 1.102 (28.0) max. ∅ 0.034 (0.86).
