DZ23-C36 - Dual Common-Cathode Zener Diodes

Product Overview

General Semiconductor

Part number	DZ23-C36
Manufacturer	General Semiconductor
File Size	404.65 KB
Description	Dual Common-Cathode Zener Diodes
Datasheet	DZ23-C36 Datasheet
Note	This datasheet PDF includes multiple part numbers: DZ23-C36, DZ2. Please refer to the document for exact specifications by model.

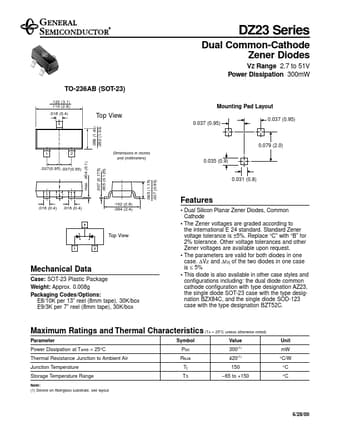

Additional preview pages of the DZ23-C36 datasheet.

Dual Silicon Planar Zener Diodes, Common Cathode.
The Zener voltages are graded according to the international E 24 standard. Standard Zener voltage tolerance is ±5%. Replace “C” with “B” for 2% tolerance. Other voltage tolerances and other Zener voltages are available upon request.
The parameters are valid for both diodes in one case. ∆VZ and ∆rzj of the two diodes in one case is ≤ 5%.
This diode is also available in other case styles and configurations inc.
