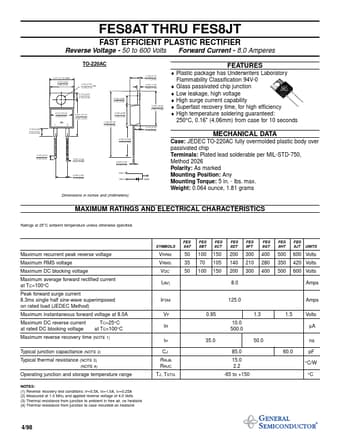

FES8AT - FAST EFFICIENT PLASTIC RECTIFIER

General Semiconductor

Datasheet Details

Part number	FES8AT
Manufacturer	General Semiconductor
File Size	75.92 KB
Description	FAST EFFICIENT PLASTIC RECTIFIER
Datasheet	FES8AT_GeneralSemiconductor.pdf

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junction.
Low leakage, high voltage.
High surge current capability.
Superfast recovery time, for high efficiency.
High temperature soldering guaranteed: 250°C, 0.16" (4.06mm) from case for 10 seconds 0.113 (2.87) 0.103 (2.62) 0.145 (3.68) 0.135 (3.43) 0.560 (14.22) 0.530 (13.46) 0.410 (10.41) 0.390 (9.91) PIN 1 0.160 (4.06) 0.140 (3.56) 0.56.
