GBPC1506 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

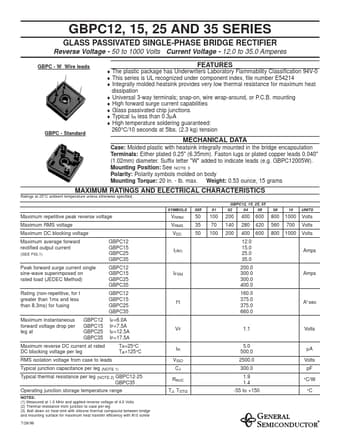

GBPC12, 15, 25 AND 35 SERIES GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Current Voltage - 12.0 to 35.0 Amperes GBPC - W Wire leads GBPC - Standard The plastic package has Underwriters Laboratory Flammability Classification 94V-0 This series is UL recognized under component index, file number E54214 Integrally molded heatsink provides very low thermal resistance for maximum heat dissipation Universal 3-way terminals;.

GBPC1506 Features

* MECHANICAL DATA Case: Molded plastic with heatsink integrally mounted in the bridge encapsulation Terminals: Either plated 0.25" (6.35mm). Faston lugs or plated copper leads 0.040" (1.02mm) diameter. Suffix letter "W" added to indicate leads (e.g. GBPC12005W). Mounting Position: See NOTE 3 Polarity
