GLZ4.7, GLZ3.3 - Zener Diodes

General Semiconductor

📥 Download Datasheet

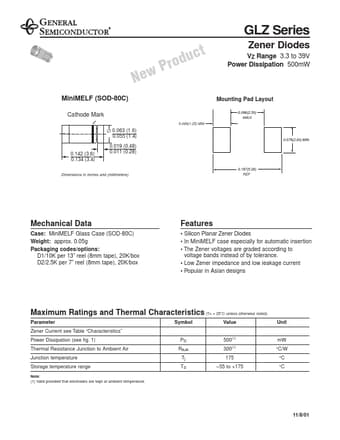

GLZ4.7 Datasheet Preview — This datasheet PDF includes multiple part numbers: GLZ4.7, GLZ3.3. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GLZ4.7, GLZ3.3
Manufacturer	General Semiconductor
File Size	65.27 KB
Description	Zener Diodes
Datasheet	GLZ3.3-GeneralSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: GLZ4.7, GLZ3.3. Please refer to the document for exact specifications by model.

GLZ4.7 Product details

Features

Silicon Planar Zener Diodes.
In MiniMELF case especially for automatic insertion.
The Zener voltages are graded according to voltage bands instead of by tolerance.
Low Zener impedance and low leakage current.
Popular in Asian designs Maximum Ratings and Thermal Characteristics (TA = 25°C unless otherwise noted) Parameter Symbol Value Zener Current see Table “Characteristics” Power Dissipation (see fig. 1) Thermal Resistance Junction to Ambient.
