MPG06G - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER

Product Overview

General Semiconductor

📥 Download Datasheet

MPG06G MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER by General Semiconductor - Datasheet Preview — Datasheet preview – MPG06G

Datasheet Details

Part number	MPG06G
Manufacturer	General Semiconductor
File Size	78.48 KB
Description	MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER
Datasheet	MPG06G Datasheet
Note	This datasheet PDF includes multiple part numbers: MPG06G, MPG06A. Please refer to the document for exact specifications by model.

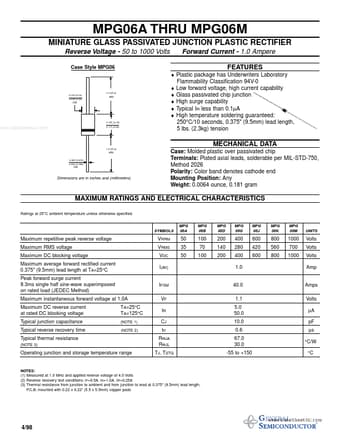

Additional preview pages of the MPG06G datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Low forward voltage, high current capability.
Glass passivated chip junction.
High surge capability.
Typical IR less than 0.1µA.
High temperature soldering guaranteed: 250°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension 0.100 (2.54) 0.090 (2.29) DIA 1.0 (25.4) MIN. 0.125 (3.18) www. DataSheet4U. com 0.115 (2.92).
