P6KA20, P6KA6.8 Datasheet - General Semiconductor

P6KA20, P6KA6.8, Automotive Transient Voltage Suppressors

P6KA6.8 thru P6KA43A Automotive Transient Voltage Suppressors Patented *DO-204AC (DO-15) Breakdown Voltage 6.8 to 43V Peak Pulse Power 600W Feat.

P6KA6.8-GeneralSemiconductor.pdf

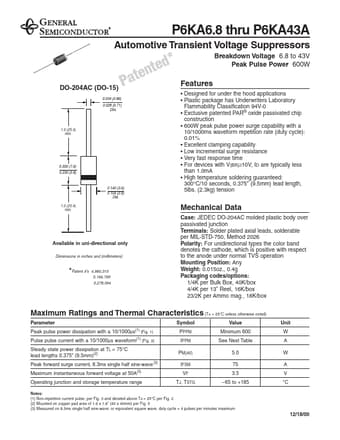

P6KA20 Datasheet Preview — This datasheet PDF includes multiple part numbers: P6KA20, P6KA6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P6KA20, P6KA6.8

Manufacturer:

General Semiconductor

File Size:

74.11 KB

Description:

Automotive Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: P6KA20, P6KA6.8.
Please refer to the document for exact specifications by model.

Applications

* 0.034 (0.86)
* Plastic package has Underwriters Laboratory 0.028 (0.71) DIA. Flammability Classification 94V-0
* Exclusive patented PAR® oxide passivated chip construction 1.0 (25.4) min.
* 600W peak pulse power surge capability with a 10/1000ms waveform repetition rat
