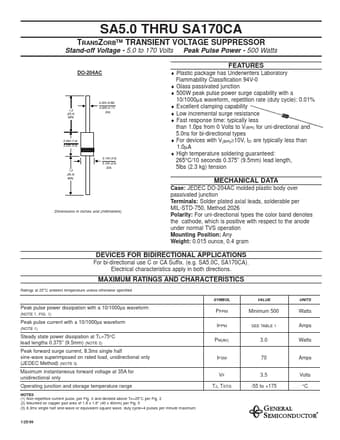

SA120 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

General Semiconductor

Datasheet Details

Part number	SA120
Manufacturer	General Semiconductor
File Size	86.89 KB
Description	TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	SA120_GeneralSemiconductor.pdf

0.034 (0.86) 1.0 (25.4) MIN. 0.028 (0.71) DIA. 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
500W peak pulse power surge capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time: typically less than 1.0ps from.
