SA48 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

General Semiconductor

📥 Download Datasheet

SA48 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR by General Semiconductor - Datasheet Preview — Datasheet preview – SA48

Datasheet Details

Part number	SA48
Manufacturer	General Semiconductor
File Size	86.89 KB
Description	TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	SA48 Datasheet

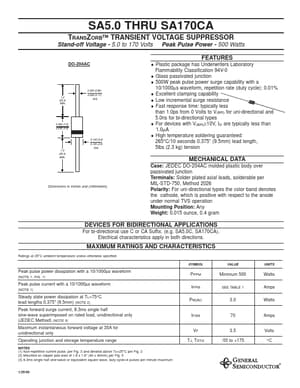

Additional preview pages of the SA48 datasheet.

Product details

Features

0.034 (0.86) 1.0 (25.4) MIN. 0.028 (0.71) DIA. 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
500W peak pulse power surge capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time: typically less than 1.0ps from.
