SGL41-50, SGL41-20, Surface Mount Schottky Rectifier

DO-213AB SOLDERABLE ENDS 1st BAND D2 D1= 0.105 0.095 (2.67) (2.41) 0.022 (0.56) 0.018 (0.46) 0.205 (5.2) 0.185(4.7) D2 = D1 +0 - 0.008 (0.20) .
 Datasheet Preview Page 1

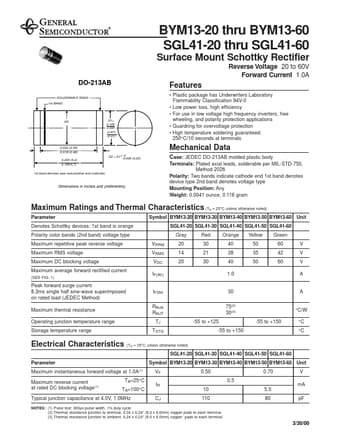

SGL41-20-GeneralSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SGL41-50, SGL41-20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGL41-50, SGL41-20

Manufacturer:

General Semiconductor

File Size:

37.45 KB

Description:

Surface Mount Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: SGL41-50, SGL41-20.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss, high efficiency

Applications

* Guardring for overvoltage protection
* High temperature soldering guaranteed: 250°C/10 seconds at terminals Mechanical Data Case: JEDEC DO-213AB molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Two bands indicate cathode end 1st b
