SM6T12A, TRANSZORB SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

NEW PRODUCT NEW PRODUCT NEW PRODUCT SM6T SERIES TRANSZORB™ SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Breakdown Voltage - 6.8 to 220 Volts Peak Pul.

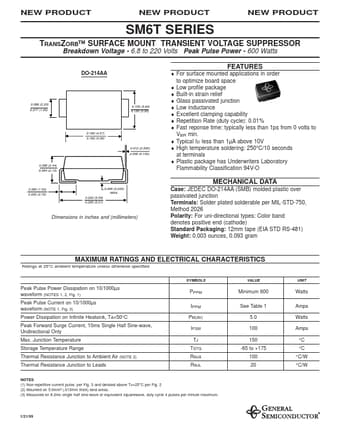

datasheet Preview Page 1 from Datasheet4u.com

SM6T12A_GeneralSemiconductor.pdf

SM6T12A Datasheet Preview — Preview of SM6T12A PDF

Datasheet Details

Part number:

SM6T12A

Manufacturer:

General Semiconductor

File Size:

55.83 KB

Description:

TRANSZORB SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features

* DO-214AA 0.086 (2.20) 0.077 (1.95) 0.155 (3.94) 0.130 (3.30) 0.180 (4.57) 0.160 (4.06) 0.012 (0.305) 0.006 (0.152) 0.096 (2.44) 0.084 (2.13)

Applications

* in order to optimize board space
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Excellent clamping capability
* Repetition Rate (duty cycle): 0.01%
* Fast reponse time: typically less than 1ps from
