SML4754, SURFACE MOUNT GLASS PASSIVATED ZENER

SML4735 THRU SML4763A SURFACE MOUNT GLASS PASSIVATED ZENER Zener Voltage - 6.2 to 91.0 Volts DO-214AC Steady State Power - 1.0 Watt .

SML4754_GeneralSemiconductor.pdf

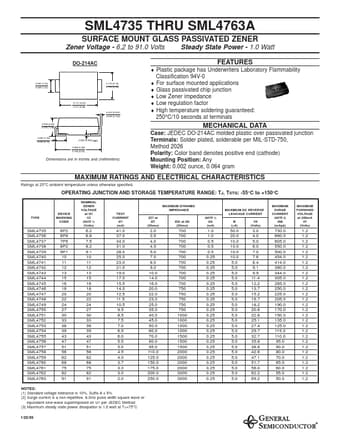

SML4754 Datasheet Preview — Preview of SML4754 PDF

Datasheet Details

Part number:

SML4754

Manufacturer:

General Semiconductor

File Size:

39.32 KB

Description:

SURFACE MOUNT GLASS PASSIVATED ZENER

Features

* 0.065 (1.65) 0.049 (1.25) 0.110 (2.79) 0.100 (2.54) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152)
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

Applications

* Glass passivated chip junction
* Low Zener impedance
* Low regulation factor
* High temperature soldering guaranteed: 250°C/10 seconds at terminals 0.090 (2.29) 0.078 (1.98) MECHANICAL DATA 0.008 (0.203) MAX. 0.208 (5.28) 0.194 (4.93) 0.060 (1.52) 0.030 (0.76) D
