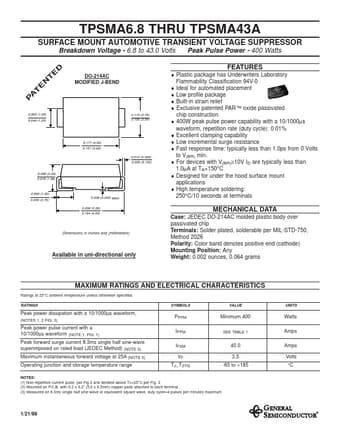

TPSMA16 Datasheet, Suppressor, General Semiconductor

TPSMA16 Features

• Suppressor P A T E DO-214AC MODIFIED J-BEND 0.065 (1.65) 0.049 (1.25) 0.110 (2.79) 0.100 (2.54) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.090 (2.29) 0.078 (1.98) 0.060 (1.52)

PDF File Details

Part number:

TPSMA16

Manufacturer:

General Semiconductor

File Size:

53.75kb

Download:

📄 Datasheet

Description:

Surface mount automotive transient voltage suppressor.

TPSMA16 Application

• Applications
• High temperature soldering: 250°C/10 seconds at terminals N T E MECHANICAL DATA Case: JEDEC DO-214AC molded plastic body o
