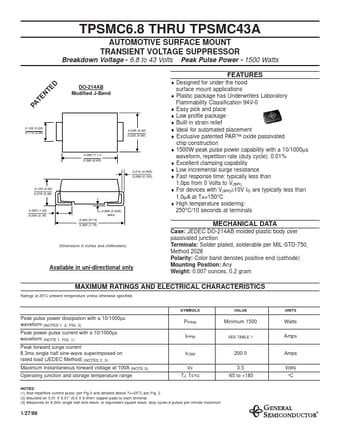

TPSMC11
FEATURES
DO-214AB Modified J-Bend
0.126 (3.20) 0.114 (2.90)
0.245 (6.22) 0.220 (5.59)
0.280 (7.11) 0.260 (6.60) 0.012 (0.305) 0.006 (0.152)
0.103 (2.62) 0.079 (2.06)
0.060 (1.52) 0.030 (0.76) 0.320 (8.13) 0.305 (7.75)
0.008 (0.203) MAX.
- Designed for under the hood surface mount applications
- Plastic package has Underwriters Laboratory Flammability Classification 94V-0
- Easy pick and place
- Low profile package
- Built-in strain relief
- Ideal for automated placement
- Exclusive patented PAR™ oxide passivated chip construction
- 1500W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%
- Excellent clamping capability
- Low incremental surge resistance
- Fast response time: typically less than 1.0ps from 0 Volts to V(BR)
- For devices with V(BR)≥10V ID are typically less than 1.0µA at TA=150°C
- High temperature soldering: 250°C/10 seconds at terminals
PA TE
MECHANICAL DATA
Case: JEDEC DO-214AB molded plastic body over...
