ZMY16 - ZENER DIODES

General Semiconductor

📥 Download Datasheet

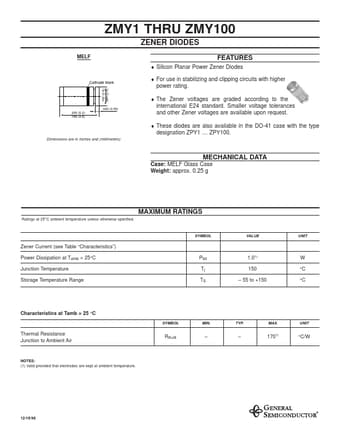

ZMY16 Datasheet Preview — Preview of ZMY16 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ZMY16
Manufacturer: General Semiconductor
File Size: 205.06 KB
Datasheet: ZMY16_GeneralSemiconductor.pdf
Description: ZENER DIODES

ZMY16 Product details

Features

Silicon Planar Power Zener Diodes.
For use in stabilizing and clipping circuits with higher power rating.
The Zener voltages are graded according to the international E24 standard. Smaller voltage tolerances and other Zener voltages are available upon request.
These diodes are also available in the DO-41 case with the type designation ZPY1 … ZPY100. Cathode Mark .102 (2.6) .094 (2.4) .022 (0.55) .205 (5.2) .189 (4.8) Dimensions are in inches and (millimet.
