EGP50G - GLASS PASSIVATED FAST EFFICIENT RECTIFIER

Name: EGP50G
SKU: EGP50G-385090

General

The EGP50G by General is a GLASS PASSIVATED FAST EFFICIENT RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	EGP50G
Manufacturer	General
File Size	59.12 KB
Description	GLASS PASSIVATED FAST EFFICIENT RECTIFIER
Datasheet	EGP50G_GeneralSemiconductor.pdf

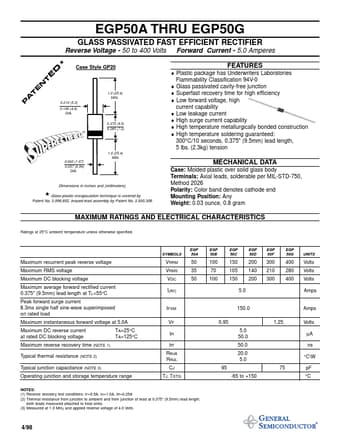

Additional preview pages of the EGP50G datasheet.

Plastic package has Underwriters Laboratories Flammability Classification 94V-0.
Glass passivated cavity-free junction.
Superfast recovery time for high efficiency.
Low forward voltage, high current capability.
Low leakage current.
High surge current capability.
High temperature metallurgically bonded construction.
High temperature soldering guaranteed: 300°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension E.
