GS1503 - HD EMBEDDED AUDIO CODEC

Datasheet Summary

Description

The GS1503 is a highly integrated, single chip solution for embedding/extracting digital audio streams into and out of high definition digital video signals.

The GS1503 supports insertion/extraction of 24-bit synchronous audio data with a 48kHz sample rate.

Features

  • complies with SMPTE 292M and SMPTE 299M.
  • single chip HD embedded audio solution.
  • operates as an embedded audio multiplexer or demultiplexer.
  • full support for 48kHz synchronous 24-bit audio.
  • support for 8 channels of audio per device.
  • cascadable architecture supports up to 16 audio channels.
  • integrated scrambler/descrambler and word alignment.
  • CRC error detection and insertion.
  • audio control packet insertion and ext.

📥 Download Datasheet

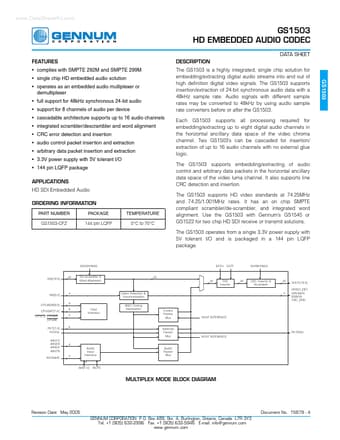

Datasheet preview – GS1503

Datasheet Details

Part number GS1503
Manufacturer Gennum Corporation
File Size 1.21 MB
Description HD EMBEDDED AUDIO CODEC
Datasheet download datasheet GS1503 Datasheet
