GC21765-I Datasheet - Giant Core

IGBT

GC21765-I General Description

Pin number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 Pin name VUFS VUFB VP1 UP VVFS VVFB VP1 VP VWFS VWFB VP1 WP VNO UN VN WN FO NC CIN VNC VN1 NW NV NU W V U P NC Figure 2 .Pin Configuration Pin Description U-phase high side floating IC supply offset voltage .

GC21765-I Datasheet (600.04 KB)

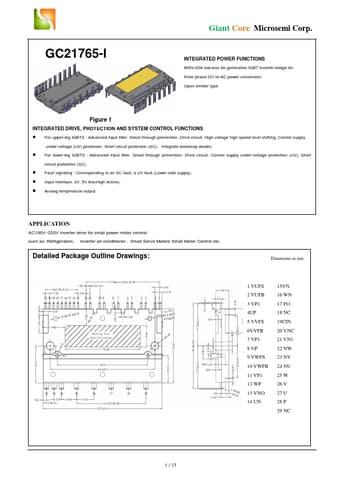

GC21765-I Datasheet Preview — Preview of GC21765-I PDF

Datasheet Details

Part number:

GC21765-I

Manufacturer:

Giant Core

File Size:

600.04 KB

Description:

Igbt.
GC21765-I Giant Core Microsemi Corp. INTEGRATED POWER FUNCTIONS 600V/20A low-loss 6th generation IGBT inverter bridge for three phase DC-to-AC power .
