GD25Q80BSIG

Dual and Quad Serial Flash

GD25Q80BSIG Features

* 8M-bit Serial Flash -1024K-byte -256 bytes per programmable page Standard, Dual, Quad SPI -Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# -Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# -Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 High Speed Clock Frequency -120MHz for fast read with 30PF load -Dual I/O

GD25Q80BSIG General Description

The GD25Q80 (8M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O data is transferred with speed of 180Mbits/s and the Quad I/O & Quad outp.

GD25Q80BSIG Datasheet (2.12 MB)

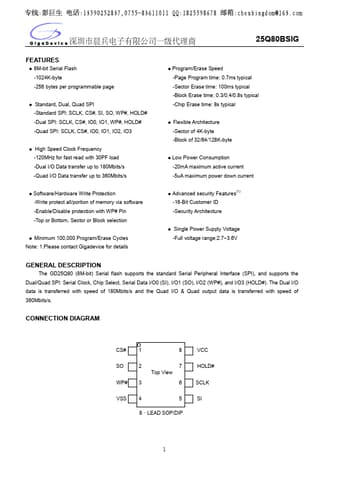

Preview of GD25Q80BSIG PDF

Datasheet Details

Part number:

GD25Q80BSIG

Manufacturer:

GigaDevice

File Size:

2.12 MB

Description:

Dual and quad serial flash.
