GL7201

1W High Power White LED Driver

GL7201 Features

* LED Power Efficiency: up to 90% Internal 2A MOSFET Switch 1.0MHz Switching Frequency Low Start-Up Voltage: 0.9V Low RDS(ON) : 100mΩ (TYP.) Open LED Protection Over Temperature Protection Low Profile SOT-26 Package Application White LED Torch (Flashlight) White LED Camera Flash DSC(Digital Still Came

GL7201 General Description

The GL7201 is a step-up DC-DC converter that delivers a regulated output current. The device switches at a 1.0MHz constant frequency, allowing for the use of small value external inductor and ceramic capacitors. The GL7201 is targeted to be used for driving 1W white LED from a 0.9V to 3.2V input. Th.

GL7201 Datasheet (353.62 KB)

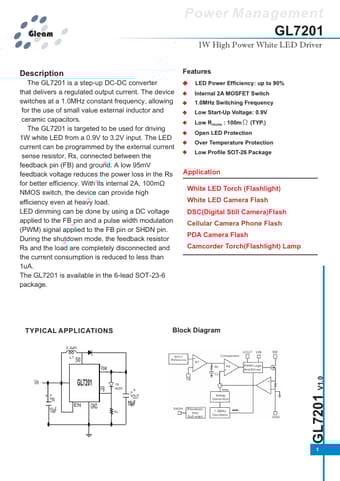

Preview of GL7201 PDF

Datasheet Details

Part number:

GL7201

Manufacturer:

Gleam

File Size:

353.62 KB

Description:

1w high power white led driver.
