102-061 Datasheet - Glenair

102-061 - Teflon Tubular Braid

102-061 Teflon Tubular Braid for Series 72 & 74 Tubing and Series 75 Conduit Braiding www.DataSheet4U.com 102-061-008 C Product Series Dash No.

(Table I) Clear Natural Color Material: FEP (Teflon) Minimum Order Length is 100 Feet (30.5M) Wire Bundle Accomodation Range (Ref) I.D.

TABLE I Dash No.

004 008 016 024 040 Nominal I.D.

.125 (3.2) .250 (6.4) .500 (12.7) .750 (19.1) 1.250 (31.8) Wire Bundle Accomodation Range Ref.

Min.

Max.

.090 (2.3) .250 (6.4) .125 (3.2) .375 (9.5) .250 (6.4) .75

102-061_Glenair.pdf

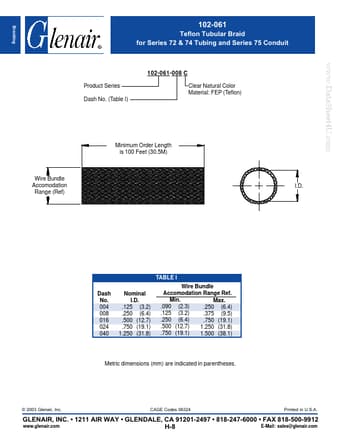

Preview of 102-061 PDF

Datasheet Details

Part number:

102-061

Manufacturer:

Glenair

File Size:

96.79 KB

Description:

Teflon tubular braid.
