AT5517 Datasheet, Solution, Global Mixed-mode Technology

AT5517 Features

  • Solution
  • 2.5V to 5.5V Input Supply Range
  • 1.2MHz Current-Mode Step-Up Converter
  • Built-In 18V, 3A 0.2Ω n-Channel MOSFET
  • Charge Pumps for VGON and VGOFF

PDF File Details

Part number:

AT5517

Manufacturer:

Global Mixed-mode Technology

File Size:

79.90kb

Download:

📄 Datasheet

Description:

Integrated power solution. The AT5517 includes a step-up converter, two charge pumps, and a high current operational amplifier for TFT LCD. Also included are a

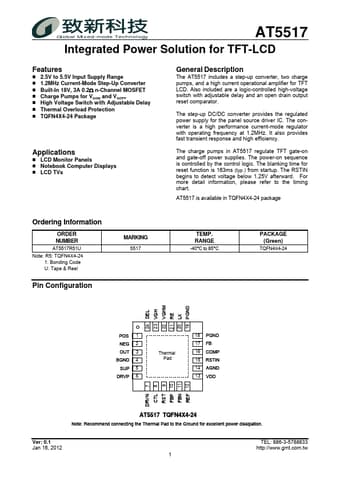

Datasheet Preview: AT5517 📥 Download PDF (79.90kb)

AT5517 Application

  • Applications
  • LCD Monitor Panels
  • Notebook Computer Displays
  • LCD TVs General Description The AT5517 includes a step-up
