G1201A, G1201A-GlobalMixed Datasheet - Global Mixed-mode Technology

G1201A High-Slew-Rate OP Amp

The G1201A is an output rail-to-rail general purpose operation amplifier. It can operate from 3V to 5.5V.The quiescent is only 3mA @ 5V supply voltage. The DC gain of the G1201A is about 90dB @5kΩ loading and the bandwidth is 6MHz. The slew rate is 5V/µs @2kΩ loading. Fast transition response and AC.

G1201A Features

* +3V to 5.5V Single Supply Operation

* Low Quiescent Current

* High Signal-to-Noise Ratio

* High Output Driving Capacity

* Large Output Voltage Swing

* High PSRR 70dB

* High DC Gain 90dB

* High CMRR 70dB

* High Slew Rate 5V/µs

G1201A-GlobalMixed-modeTechnology.pdf

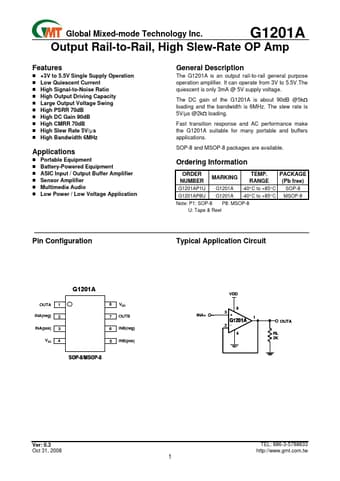

G1201A Datasheet Preview — This datasheet PDF includes multiple part numbers: G1201A, G1201A-GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G1201A, G1201A-GlobalMixed

Manufacturer:

Global Mixed-mode Technology

File Size:

49.94 KB

Description:

High-slew-rate op amp.

Note:

This datasheet PDF includes multiple part numbers: G1201A, G1201A-GlobalMixed.
Please refer to the document for exact specifications by model.
