G2129 - 1-2-4-Bit Bidirectional Voltage-Level Translator

Product Overview

Global Mixed-mode Technology

📥 Download Datasheet

G2129 1-2-4-Bit Bidirectional Voltage-Level Translator by Global Mixed-mode Technology - Datasheet Preview — Datasheet preview – G2129

Datasheet Details

Part number	G2129
Manufacturer	Global Mixed-mode Technology
File Size	125.47 KB
Description	1-2-4-Bit Bidirectional Voltage-Level Translator
Datasheet	G2129 Datasheet

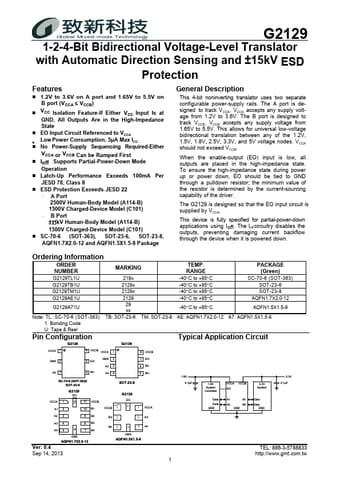

Additional preview pages of the G2129 datasheet.

Product details

Description

This 4-bit noninverting translator uses two separate configurable power-supply rails.

Features

1.2V to 3.6V on A port and 1.65V to 5.5V on B port (VCCA ≤ VCCB).
VCC Isolation Feature-If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State.
EO Input Circuit Referenced to VCCA.
Low Power Consumption, 5µA Max ICC.
No Power-Supply Sequencing Required-Either VCCA or VCCB Can be Ramped First.
Ioff Supports Partial-Power-Down Mode Operation.
Latch-Up Performance Exceeds 100mA Per JESD 78, Class II.
ESD Pr.
