G2207

6+6 Channels PMU

G2207 Features

* 2.5V ~ 5.5V Input Voltage Operation

* 95% Efficient DC/DC Converter

* Built-in 1-ch synchronous boost converter, 1-ch auto buck-boost converter, 3-ch synchronous buck converter, 1-ch WLED driver, 4-ch LDOs, 1-ch power switch for CMOS image sensor, and 1-ch low quiescent cur

G2207 General Description

The G2207 provide a complete power supply solution for digital cameras. They improve performance, component count, and size compared to other multi-channel controllers in 1-cell Li-Ion. On-chip MOSFETs provide up to 92~95% efficie.

G2207 Datasheet (90.22 KB)

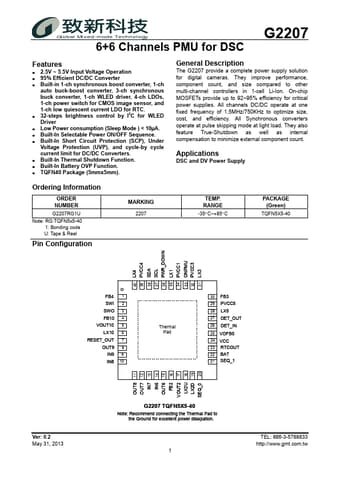

Preview of G2207 PDF

Datasheet Details

Part number:

G2207

Manufacturer:

Global Mixed-mode Technology

File Size:

90.22 KB

Description:

6+6 channels pmu.
