G2602

High Voltage Multi-Topology LED Driver

G2602 Features

* High Voltage : VIN up to 36V, VOUT up to 36V

* 1.5A Switch Current

* Buck, Boost or Buck-Boost Operation

* Current Mode PWM with 1MHz Switching Fre- quency

* Easy dimming : Analog, PWM or PWM Con- verting to Analog with One External Capacitor

* Soft

G2602 General Description

The G2602 is a current mode DC/DC converter with an internal 1.5A, 40V switch specifically designed to drive LEDs. The G2602 operates as a LED driver in buck, boost and buck-boost mode. The LED current is externally programmable with a 120mV sense resistor. With a 1MHz operating frequency, the exter.

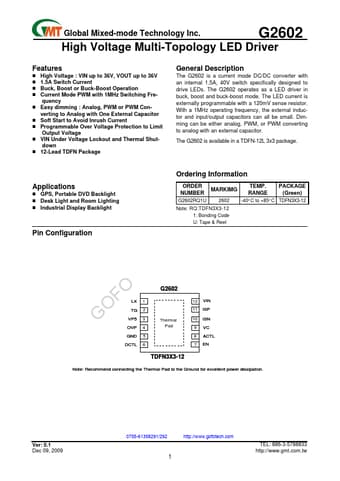

G2602 Datasheet (432.05 KB)

Preview of G2602 PDF

Datasheet Details

Part number:

G2602

Manufacturer:

Global Mixed-mode Technology

File Size:

432.05 KB

Description:

High voltage multi-topology led driver.
