G3603

Single 2-Input Positive OR Gate

G3603 Features

* +1.65V to +5.5V Single-Supply Operation

* Input Accept Voltages to 5.5V

* Max tpd of 3.6ns at 3.3V

* Low Power Consumption, 10µA Icc Max

* ±24mA Output Drive at 3.3V

* IOFF Partial-Power-Down Mode Operation

* WLCSP2X3-5 package General Descr

G3603 General Description

The G3603 is a single or gate with high speed. It’s designed for 1.65V to 5.5V Vcc operation, and low power consumption. The G3603 performs the Boolean function Y=A+B. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the output, preventing da.

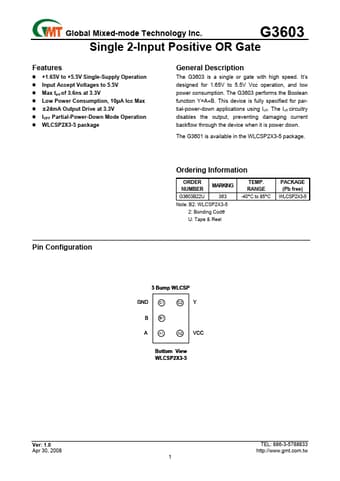

G3603 Datasheet (128.28 KB)

Preview of G3603 PDF

Datasheet Details

Part number:

G3603

Manufacturer:

Global Mixed-mode Technology

File Size:

128.28 KB

Description:

Single 2-input positive or gate.
