G529 Power Switch

G529 Description

Global Mixed-mode Technology Power Switch for MHL G529 .
The G529 is an integrated power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.

G529 Features

* 70mΩ High-Side MOSFET
* Current Limit for MHL Power Switch
* Operating Range:2.7V to 5.5V
* 1mS Typical Rise Time
* Fast Overcurrent Response -3µs (TYPICAL)
* Under voltage Lockout
* 130µA Quiescent Supply Current
* 1µA Maximum Shutdo

G529 Applications

* MHL Power Switch
* High-Side Power Protection Switch
* USB Power Management
* USB Host and Self-Powered Bubs
* USB Bus-Powered Hubs
* Hot Plug-In Power Supplies

📥 Download Datasheet

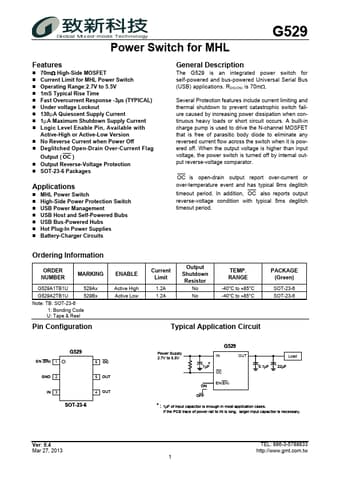

Preview of G529 PDF
