G553 Datasheet, Switch, Global Mixed-mode Technology

G553 Features

  • Switch
  • 125mΩ High-Side MOSFET
  • 450mA Typical Current Limit with Foldback
  • Operating Range:2.7V to 5.5V
  • Under voltage Lockout
  • 65µA Quiescent Supp

PDF File Details

Part number:

G553

Manufacturer:

Global Mixed-mode Technology

File Size:

34.83kb

Download:

📄 Datasheet

Description:

Power distribution switch. The G553 is an integrated 125mΩ power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. Several Protec

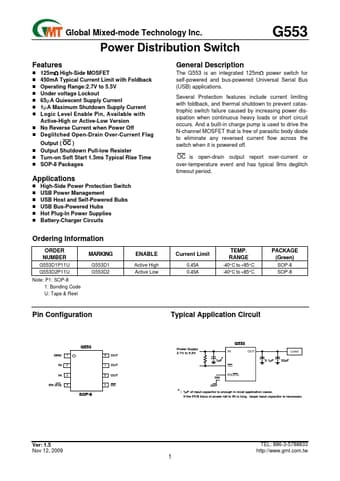

Datasheet Preview: G553 📥 Download PDF (34.83kb)

G553 Application

  • Applications
  • High-Side Power Protection Switch
  • USB Power Management
  • USB Host and Self-Powered Bubs
  • USB Bus-P
