G5562A, G5562A-GlobalMixed - Bias Power Supply

Global Mixed-mode Technology

Datasheet Details

Part number	G5562A, G5562A-GlobalMixed
Manufacturer	Global Mixed-mode Technology
File Size	81.62 KB
Description	Bias Power Supply
Datasheet	G5562A-GlobalMixed-modeTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: G5562A, G5562A-GlobalMixed. Please refer to the document for exact specifications by model.

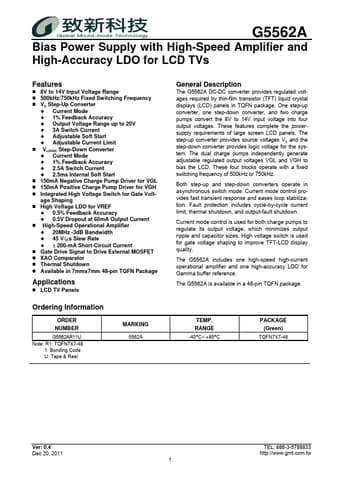

The G5562A DC-DC converter provides regulated voltages required by thin-film transistor (TFT) liquid crystal displays (LCD) panels in TQFN package.

8V to 14V Input Voltage Range.
500kHz/750kHz Fixed Switching Frequency.
VS Step-Up Converter Current Mode 1% Feedback Accuracy Output Voltage Range up to 20V 3A Switch Current Adjustable Soft Start Adjustable Current Limit.
VLOGIC Step-Down Converter Current Mode 1% Feedback Accuracy 2.5A Switch Current 2.5ms Internal Soft Start.
150mA Negative Charge Pump Driver for VGL.
150mA Positive Charge Pump Driver for VGH.
