G557

Power Distribution Switch

G557 Features

* 70mΩ High-Side MOSFET (G557A,G557B,G557C)

* Available with 3 Versions of Current Limits with Foldback

* Operating Range:2.7V to 5.5V

* 1.5mS Typical Rise Time

* Fast Overcurrent Response - 3µS (TYPICAL)

* Under voltage Lockout

* 100µA Quiesce

G557 General Description

The G557 is an integrated power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. G557A, G557B, G557C are 70mΩ RDS(ON). S.

G557 Datasheet (68.04 KB)

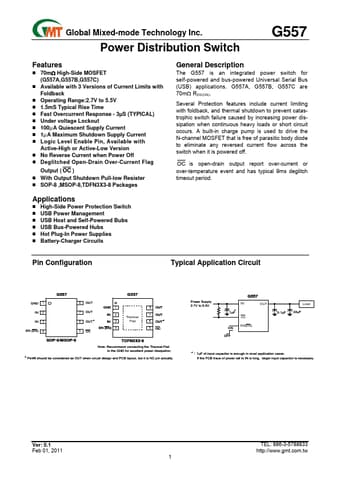

Preview of G557 PDF

Datasheet Details

Part number:

G557

Manufacturer:

Global Mixed-mode Technology

File Size:

68.04 KB

Description:

Power distribution switch.
