G5616A Datasheet - Global Mixed-mode Technology

Complete DDR / DDRII and DDRIII Memory Solution Synchronous Buck PWM Controller

G5616A Features

* Synchronous Buck Controller (VDDQ)

* Ultra-High Efficiency

* No Current-Sense Resistor (Lossless ILIMIT)

* Quasi-PWM with 100ns Load-Step Response

* 1.8V(DDRII) /1.5V(DDRIII) Fixed or 0.75V to 3.6V Adjustable Output Range

* 2V to 28V Battery Input Ran

G5616A General Description

The G5616A is intended for DDR/SSTL-2, DDRII/SSTL-18 and DDRIII memory systems. It integrates a synchronous buck PWM controller with a 2A sink-source linear regulator and buffered reference. The PWM controller uses constant on-time control scheme to handle wide input/output voltage ratios with ease .

G5616A Datasheet (78.66 KB)

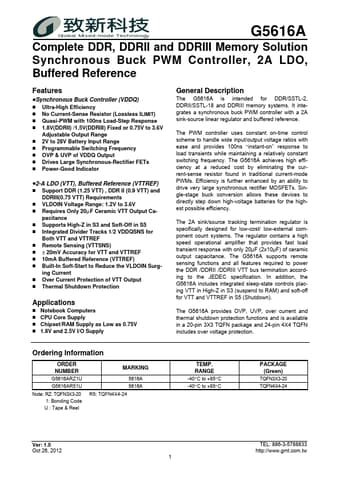

Preview of G5616A PDF

Datasheet Details

Part number:

G5616A

Manufacturer:

Global Mixed-mode Technology

File Size:

78.66 KB

Description:

Complete ddr / ddrii and ddriii memory solution synchronous buck pwm controller.
Global Mixed-mode Technology G5616A Complete DDR, DDRII and DDRIII Memory Solution Synchronous Buck PWM Controller, 2A LDO, Buffered Reference Fe.
