G5756

1.4MHz Step-down DC/DC

G5756 Features

* 1.5A Output Current

* 0.15Ω Internal Power MOSFET Switch

* Stable with Low ESR Output Ceramic Capaci- tors

* 30µA Shutdown Mode

* Fixed 1.4MHz Frequency

* Thermal Shutdown

* Cycle-by-Cycle Over Current Protection

* Wide 4.5V to 24V Op

G5756 General Description

The G5756 is a monolithic step-down switch mode regulator with a built in internal power MOSFET. It achieves 1.5A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fa.

G5756 Datasheet (102.74 KB)

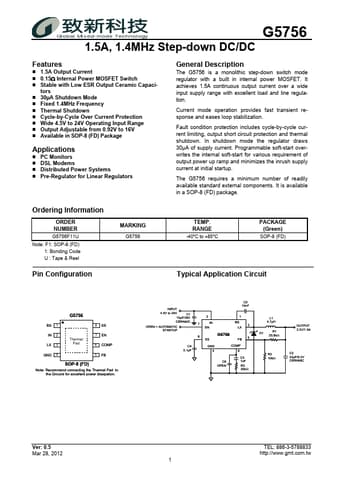

Preview of G5756 PDF

Datasheet Details

Part number:

G5756

Manufacturer:

Global Mixed-mode Technology

File Size:

102.74 KB

Description:

1.4mhz step-down dc/dc.
