G7921

Three Remote Temperature Sensors and One Fan Controllers

G7921 Features

* Measures Three Remote Temperatures

* Adjustable Offset for Each Sensor via SMBus

* Accuracy: ±1°C (+ 60°C to + 100°C) ±3°C (- 10°C to + 120°C)

* +4.5V to +5.5V Supply Range

* Programmable Hardware Thermal Shutdown for Sensor 2 and Programmable Software Therm

G7921 General Description

The G7921 contains 3 precise digital thermometers, one fan controllers, hardware and software thermal shutdown, and a system-reset circuit. The thermometers report the temperature of 3 remote sensors. The remote sensors are diode-connected transistors typically a low-cost, easily mounted 2N3904 NPN .

G7921 Datasheet (146.03 KB)

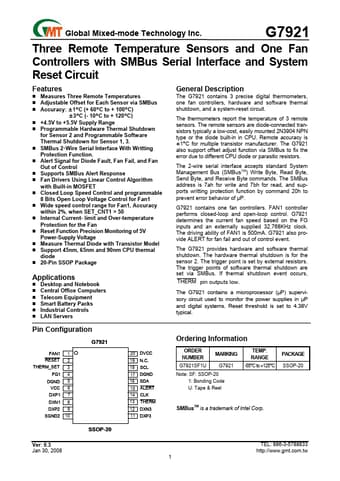

Preview of G7921 PDF

Datasheet Details

Part number:

G7921

Manufacturer:

Global Mixed-mode Technology

File Size:

146.03 KB

Description:

Three remote temperature sensors and one fan controllers.
Global Mixed-mode Technology Inc. G7921 Three Remote Temperature Sensors and One Fan Controllers with SMBus Serial Interface and System Reset Circui.
