G9117-18T43U, G9117-18T23U Datasheet - Global Mixed-mode Technology

G9117-18T43U 1A Low-Dropout Linear Regulator

The G9117-XX is a low dropout linear regulator with a dropout of 1.2V at 800mA of load current and 1.3V at 1A of load current. It is available in fixed voltage : 1.8V, 2.5V, 3.3V and 5.0V versions. The G9117-XX provides over temperature and over current protection circuits to prevent it from being d.

G9117-18T43U Features

* Available in 1.8V, 2.5V, 3.3V, 5.0V Versions

* Space Saving SOT-89, TO-220, TO-252 and SOT-223 Package

* Internal Short Circuit Current Limiting

* Internal Over Temperature Protection

* Output Current in Excess of 1A Applications

* Post Regulation fo

G9117-18T23U-GlobalMixedmodeTechnology.pdf

This datasheet PDF includes multiple part numbers: G9117-18T43U, G9117-18T23U. Please refer to the document for exact specifications by model.

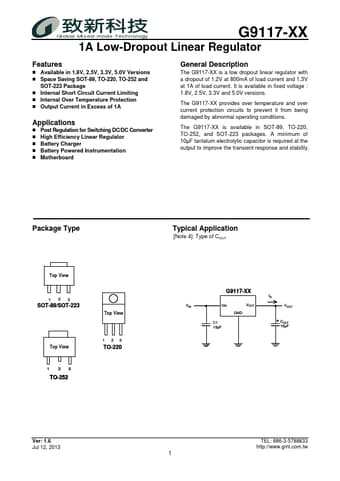

G9117-18T43U Datasheet Preview Page 2

Datasheet Details

Part number:

G9117-18T43U, G9117-18T23U

Manufacturer:

Global Mixed-mode Technology

File Size:

58.30 KB

Description:

1a low-dropout linear regulator.

Note:

This datasheet PDF includes multiple part numbers: G9117-18T43U, G9117-18T23U.
Please refer to the document for exact specifications by model.
