G9117-50T43D, G9117-18T23U - 1A Low-Dropout Linear Regulator

Global Mixed-mode Technology

📥 Download Datasheet

G9117-50T43D Datasheet Preview — This datasheet PDF includes multiple part numbers: G9117-50T43D, G9117-18T23U. Please refer to the document for exact specifications by model.

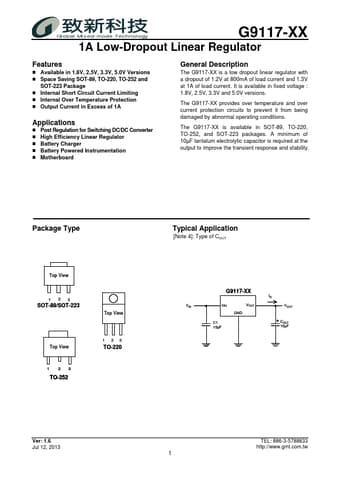

datasheet Preview Page 2

Datasheet Details

Part number	G9117-50T43D, G9117-18T23U
Manufacturer	Global Mixed-mode Technology
File Size	58.30 KB
Description	1A Low-Dropout Linear Regulator
Datasheet	G9117-18T23U-GlobalMixedmodeTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: G9117-50T43D, G9117-18T23U. Please refer to the document for exact specifications by model.

G9117-50T43D Product details

Description

The G9117-XX is a low dropout linear regulator with a dropout of 1.2V at 800mA of load current and 1.3V at 1A of load current.

Features

Available in 1.8V, 2.5V, 3.3V, 5.0V Versions.
Space Saving SOT-89, TO-220, TO-252 and SOT-223 Package.
Internal Short Circuit Current Limiting.
Internal Over Temperature Protection.
Output Current in Excess of 1A.
