G98M09T45D, G98M05T45U, 5V - 12V 1A Low Dropout Regulator

Global Mixed-mode Technology G98MXX 5V~12V 1A Low Dropout Regulator .
The G98MXX positive voltage regulator is a family with output voltage from 5V to 12V, step 1V.

G98M05T45U-GlobalMixedmodeTechnology.pdf

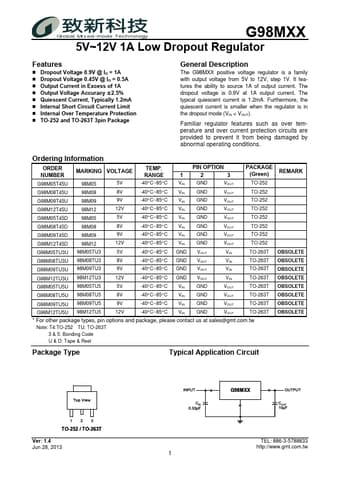

G98M09T45D Datasheet Preview — This datasheet PDF includes multiple part numbers: G98M09T45D, G98M05T45U. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G98M09T45D, G98M05T45U

Manufacturer:

Global Mixed-mode Technology

File Size:

69.62 KB

Description:

5V - 12V 1A Low Dropout Regulator

Note:

This datasheet PDF includes multiple part numbers: G98M09T45D, G98M05T45U.
Please refer to the document for exact specifications by model.

Features

* Dropout Voltage 0.9V @ IO = 1A
* Dropout Voltage 0.45V @ IO = 0.5A
* Output Current in Excess of 1A
* Output Voltage Accuracy ±2.5%
* Quiescent Current, Typically 1.2mA
* Internal Short Circuit Current Limit
* Internal Over Temperature Protec
