G5137P - DIGITAL PWM

Description

The G5137P is a high performance AC/DC power supply controller which uses digital control technology to build peak current mode PWM flyback power supplies.

Features

  • while minimizing the external component count, simplifying EMI design and lowering the total bill of material cost. The G5137P removes the need for secondary feedback circuit while achieving excellent line and load regulation. It also eliminates the need for loop compensation components while maintaining stability over all operating conditions. Pulse-by-pulse waveform analysis allows for a loop response that is much faster than traditional solutions, resulting in improved dynamic load response f.

📥 Download Datasheet

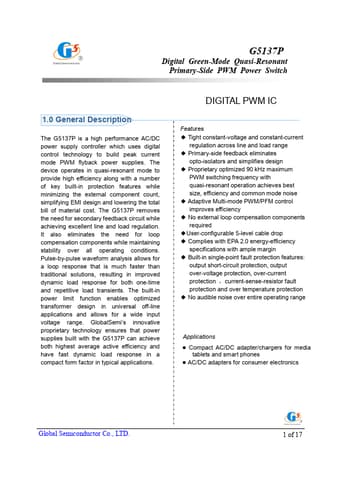

Datasheet preview – G5137P

Datasheet Details

Part number G5137P
Manufacturer Global Semiconductor
File Size 901.75 KB
Description DIGITAL PWM
Datasheet download datasheet G5137P Datasheet
Additional preview pages of the G5137P datasheet.
