G5138PK - Digital Green-Mode QR Primary-Side PWM Power Switch

This page provides the datasheet information for the G5138PK, a member of the G5138PA Digital Green-Mode QR Primary-Side PWM Power Switch family.

Description

The G5138P is a high performance AC/DC power supply controller which uses digital control technology to build peak current mode PWM flyback power supplies.

Features

  • while minimizing the external component count, simplifying EMI design and lowering the total bill of material cost. The -K version can operate at peak power mode with momentary peak power higher than the maximum continuous output power without design cost and size increase. The G5138P removes the need for secondary feedback circuit while achieving excellent line and load regulation. It also eliminates the need for loop compensation components while maintaining stability over all operating conditi.

📥 Download Datasheet

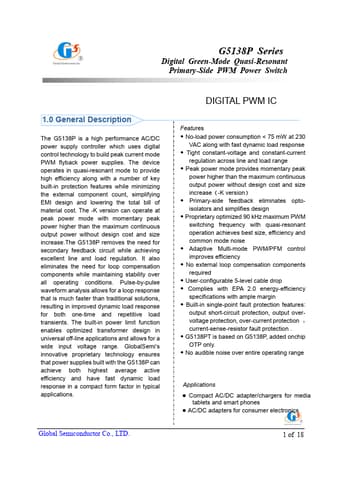

Datasheet preview – G5138PK

Datasheet Details

Part number G5138PK
Manufacturer Global Semiconductor
File Size 677.92 KB
Description Digital Green-Mode QR Primary-Side PWM Power Switch
Datasheet download datasheet G5138PK Datasheet
