CFUKFG - SM CERAMIC FILTER

Golledge Electronics

Datasheet Details

Part number	CFUKFG
Manufacturer	Golledge Electronics
File Size	51.13 KB
Description	SM CERAMIC FILTER
Datasheet	CFUKFG_GolledgeElectronics.pdf

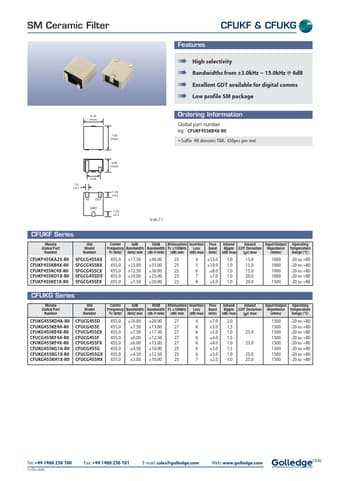

CFUKF & CFUKG « « « « High selectivity Bandwidths from ±3.0kHz ~ 15.0kHz @ 6dB Excellent GDT available for digital comms Low profile SM package 6.30 (max) Ordering Information 7.50 (max) Global part number eg: CFUKF455KB4X-R0 ͷ Suffix -R0 denotes T&R, 450pcs per reel 4.00 (max) 4.00 1.0 ±0.1 IN OUT GND 1.50 ±0.3 1.50 ±0.3 Scale 2:1 CFUKF Series Murata Global Part Number Old Model Number Centre 6dB 50dB Attenuation Insertion Frequency Bandwidth Bandwidth Fc ±100kHz Loss Fc (kHz) (kHz) m.
