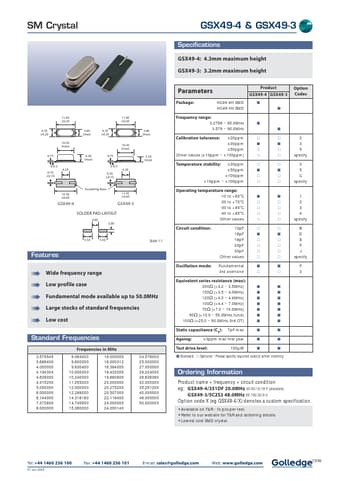

SM Crystal GSX49-4 & GSX49-3 Specifications GSX49-4: 4.3mm maximum height GSX49-3: 3.2mm maximum height Parameters Package: 11.40 ±0.20 4.70 ±0.20 10.30 (max) 0.75 0-0.3 0.70 ±0.10 4.30 (max) 4.20 0.75 0-0.3 0.70 ±0.10 Insulating Base 12.30 ±0.60 3.80 (max) 4.70 ±0.20 10.30 (max) 3.20 (max) 4.20 11.40 ±0.20 3.80 (max) Product GSX49-4 GSX49-3 HC49-4H SMD HC49-3H SMD ࡯ ࡯ Option Codes Frequency range: 3.2768 ~ 90.0MHz 3.579 ~ 90.0MHz Calibration tolerance: ±20ppm ±30ppm ±50ppm Other values (±1

GSX49-3 Features

* « « « « « Wide frequency range Low profile case Fundamental mode available up to 50.0MHz Large stocks of standard frequencies Low cost Oscillation mode: Equivalent series resistance (max): 200⏲ (>3.2 ~ 3.5MHz) 150⏲ (>3.5 ~ 4.0MHz) 120⏲ (>4.0 ~ 4.4MHz) 100⏲ (>4.4 ~ 7.0MHz) 70⏲ (>7.0 ~ 10.0MHz) 50
