GXO-3202 HIGH STABILITY CMOS OSCILLATOR

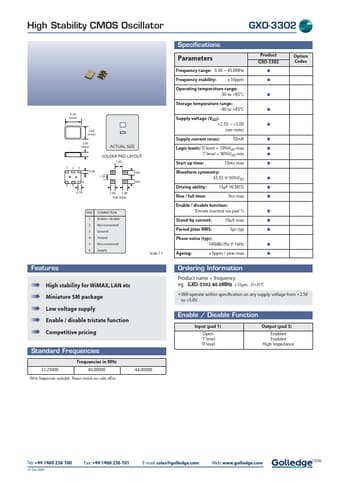

High Stability CMOS Oscillator Specifications GXO-3302 Product GXO-3302 ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ ࡯ Parameters Frequency range: 0.50 ~ 45.0MHz Frequency stability: ±10ppm Option Codes Operating temperature range: -30 to +85°C Storage temperature range: -40 to +85°C 3.30 (max) 2.60 (max) 1.00 (max) Supply voltage (VDD): +2.5V ~ +5.0V (see note) Supply current (max): ACTUAL SIZE SOLDER PAD LAYOUT 1.60 10mA Logic levels: ‘0’ level = 10%VDD max ‘1’ level = 90%VDD min Start up time: 10ms.

GXO-3202 Features

* Ordering Information Product name + frequency eg: GXO-3302 40.0MHz ±10ppm, -30+85°C ͷ Will operate within specification on any supply voltage from +2.5V to +5.0V. « « « « « High stability for WiMAX, LAN etc Miniature SM package Low voltage supply Enable / disable tristate function Competitive pri
