SSFP10N40, SSFP10N40-Good - Power MOSFET

Good-Ark

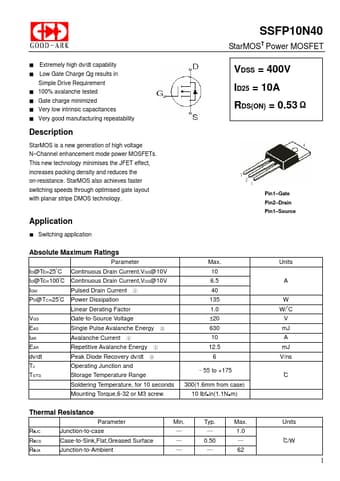

SSFP10N40 Datasheet Preview — This datasheet PDF includes multiple part numbers: SSFP10N40, SSFP10N40-Good. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SSFP10N40, SSFP10N40-Good
Manufacturer	Good-Ark
File Size	122.21 KB
Description	Power MOSFET
Datasheet	SSFP10N40-Good-Ark.pdf
Note	This datasheet PDF includes multiple part numbers: SSFP10N40, SSFP10N40-Good. Please refer to the document for exact specifications by model.

SSFP10N40 Product details

Description

StarMOS is a new generation of high voltage N Channel enhancement mode power MOSFETs. Switching application VDSS = 400V ID25 = 10A RDS(ON) = 0.53Ω Pin1 Gate Pin2 Drain Pin1 Source Absolute Maximum Ratings ID@Tc=25ْ C ID@Tc=100ْC P
