Description

AGN5A thru AGN5M Surface Mount Glass Passivated Standard Rectifiers Reverse Voltage 50V to 1000V Forward Current 5.0A .

📥 Download Datasheet

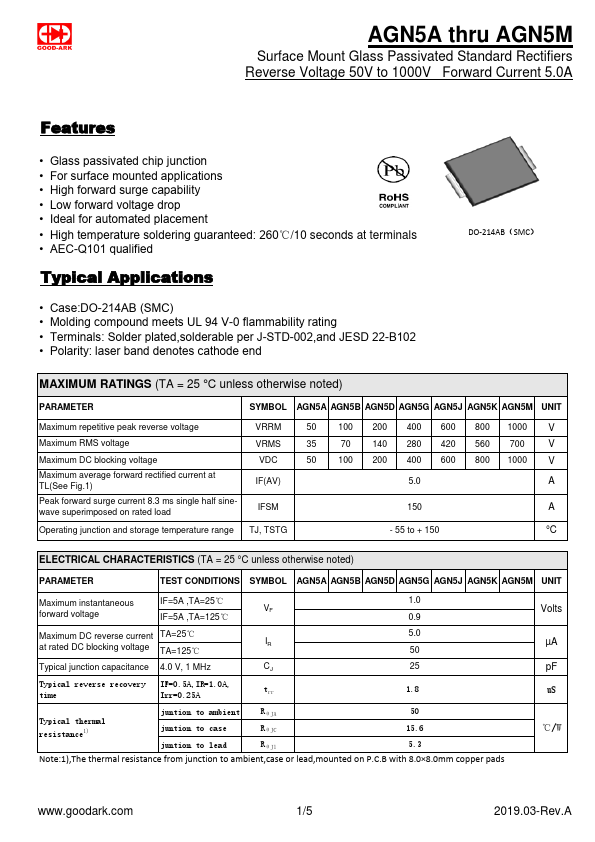

AGN5A Datasheet Preview — Preview of AGN5A PDF

Datasheet Specifications

Part number: AGN5A
Manufacturer: Goodark
File Size: 710.05 KB
Datasheet: AGN5A-Goodark.pdf
Description: Surface Mount Glass Passivated Standard Rectifiers

Features

* Glass passivated chip junction

Applications

* High forward surge capability
* Low forward voltage drop
* Ideal for automated placement
* High temperature soldering guaranteed: 260℃/10 seconds at terminals
* AEC-Q101 qualified Typical Applications

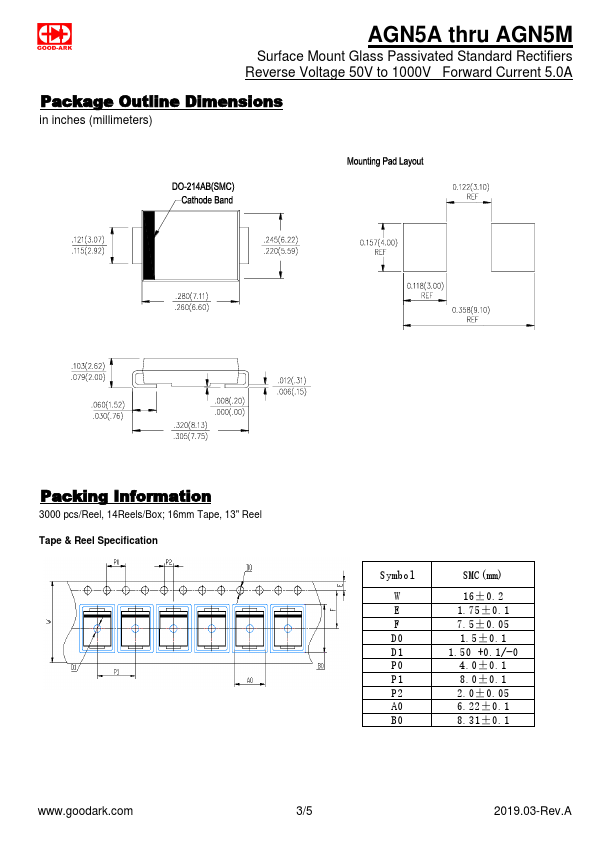

* Case:DO-214AB (SMC)
* Molding compound
