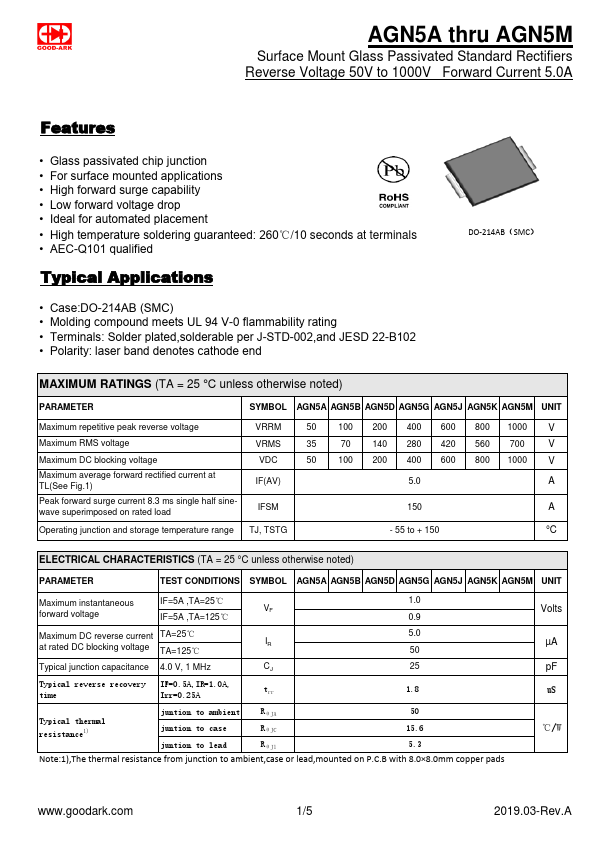

AGN5J
Features
- Glass passivated chip junction
- For surface mounted applications
- High forward surge capability
- Low forward voltage drop
- Ideal for automated placement
- High temperature soldering guaranteed: 260℃/10 seconds at terminals
- AEC-Q101 qualified
Typical Applications
- Case:DO-214AB (SMC)
- Molding pound meets UL 94 V-0 flammability rating
- Terminals: Solder plated,solderable per J-STD-002,and JESD 22-B102
- Polarity: laser band denotes cathode end
DO-214AB（SMC）
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL AGN5A AGN5B AGN5D AGN5G AGN5J AGN5K AGN5M UNIT
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
VRMS
Maximum DC blocking voltage
Maximum average forward rectified current at TL(See Fig.1)
IF(AV)
Peak forward surge current 8.3 ms single half sinewave superimposed on rated load
IFSM
Operating junction and storage temperature range TJ, TSTG
100 200 400 600 800 1000 V
140 280 420 560 700
100...
