LBR1510S, LBR151S Single Phase Surface Mount Bridge Fast Recovery Rectifiers

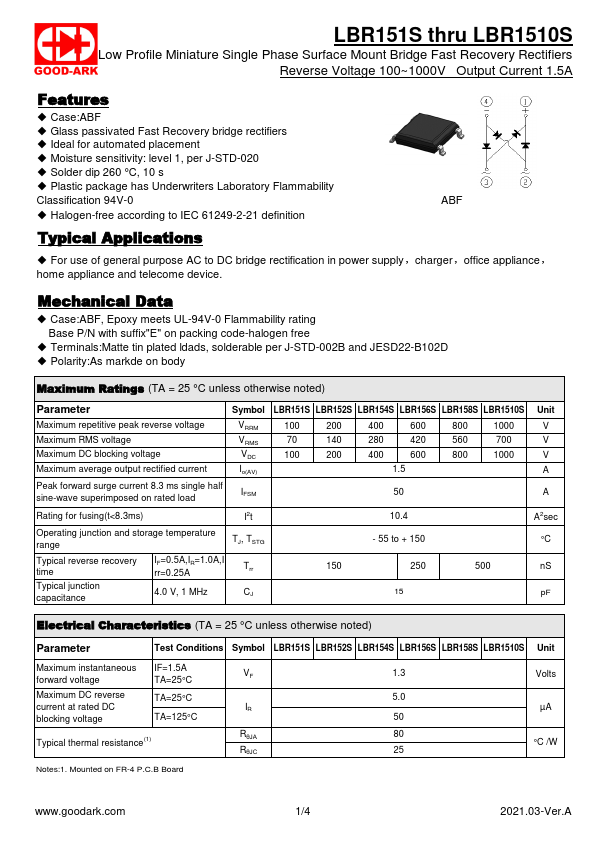

📥 Download Datasheet  Datasheet Preview Page 1

Description

LBR151S thru LBR1510S Low Profile Miniature Single Phase Surface Mount Bridge Fast Recovery Rectifiers Reverse Voltage 100~1000V Output Current 1.5A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LBR1510S, LBR151S. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LBR1510S, LBR151S
Manufacturer
Goodark
File Size
380.50 KB
Datasheet
LBR151S-Goodark.pdf
Description
Single Phase Surface Mount Bridge Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: LBR1510S, LBR151S.
Please refer to the document for exact specifications by model.

Features

* Case:ABF
* Glass passivated Fast Recovery bridge rectifiers
* Ideal for automated placement
* Moisture sensitivity: level 1, per J-STD-020
* Solder dip 260 °C, 10 s
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ABF
* Halogen-free ac

Applications

* For use of general purpose AC to DC bridge rectification in power supply,charger,office appliance, home appliance and telecome device. Mechanical Data
* Case:ABF, Epoxy meets UL-94V-0 Flammability rating Base P/N with suffix"E" on packing code-halogen free
* Terminals:Matte tin plate
