OB6563 Datasheet - GreenEngine

OB6563 High Performance PFC Controller

OB6561P/OB6563 is a high performance transition mode(TM) Power Factor Correction(PFC) control IC. Designed with OnBright patented proprietary technology, OB6561P/OB6563 optimizes tradition transition mode control easily achieving system power factor to close to 1 with very low THD. OB6561P/OB6563 i.

OB6563 Features

* Transition mode operation with built-in analog multiplier THD optimization System open loop protection Proprietary audio noise elimination Dynamic and static output over voltage protection(OVP) Cycle-by-Cycle current limiting Burst mode control for improved efficiency at light load External ENA/dis

OB6563_GreenEngine.pdf

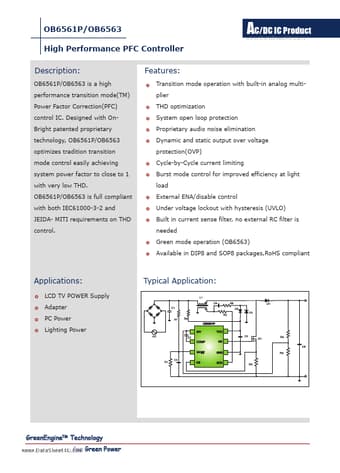

Preview of OB6563 PDF

Datasheet Details

Part number:

OB6563

Manufacturer:

GreenEngine

File Size:

149.84 KB

Description:

High performance pfc controller.
