MAHE1B, MAHE1A - Surface Mount Ultra Fast Rectifiers

📥 Download Datasheet

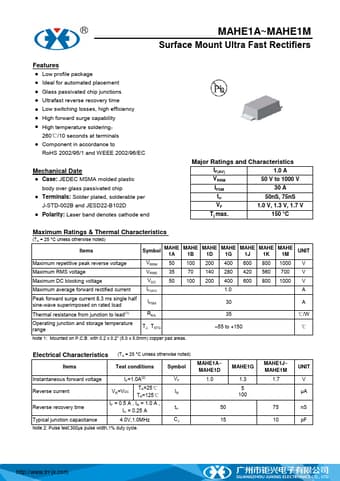

MAHE1B Datasheet Preview — This datasheet PDF includes multiple part numbers: MAHE1B, MAHE1A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MAHE1B, MAHE1A
Manufacturer	Guangzhou Juxing Electronic
File Size	730.50 KB
Description	Surface Mount Ultra Fast Rectifiers
Datasheet	MAHE1A-GuangzhouJuxingElectronic.pdf
Note	This datasheet PDF includes multiple part numbers: MAHE1B, MAHE1A. Please refer to the document for exact specifications by model.

MAHE1B Product details

Features

Low profile package Ideal for automated placement Glass passivated chip junctions Ultrafast reverse recovery time Low switching losses, high efficiency High forward surge capability High temperature soldering： 260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC.
Major Ratings and Characteristics Mechanical Date.
IF(AV) VRRM IFSM trr VF Tj max. 1.0 A 50 V to 1000 V 30 A 50nS, 75nS 1.0 V, 1.3 V, 1.7 V 1.
