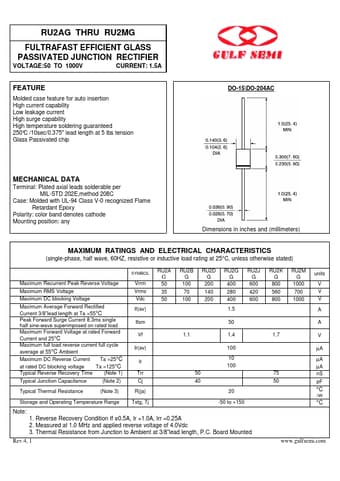

RU2BG
FEATURE
Molded case feature for auto insertion High current capability Low leakage current High surge capability High temperature soldering guaranteed 250° C /10sec/0.375" lead length at 5 lbs tension Glass Passivated chip
DO-15DO-204AC
MECHANICAL DATA
Terminal: Plated axial leads solderable per MIL-STD 202E,method 208C Case: Molded with UL-94 Class V-0 recognized Flame Retardant Epoxy Polarity: color band denotes cathode Mounting position: any Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)
SYMBOL
RU2A
50 35 50
Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC blocking Voltage Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Maximum Forward Voltage at rated Forward Current and 25°C Maximum full load reverse current...
